Wharefedale Pro Active Personal Monitoring System

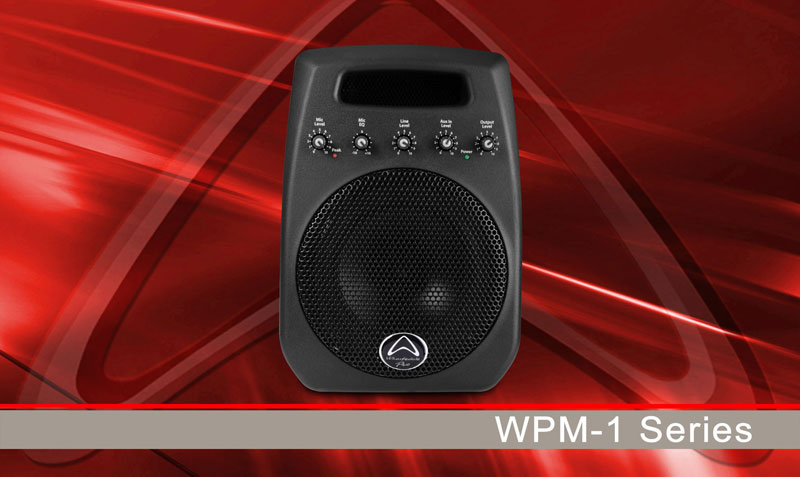

The WPM-1 from Wharfedale Pro is a personal monitoring solution with a number of great features that suit performers and artists who demand perfect monitor mixes and total control. A 5” full range driver is matched to the on-board processing, EQ and amplification to provide clear, natural and intelligible vocal foldback.

The WPM-1 can be stand mounted with straight or boom mic stands, alternatively the WPM-1 can be placed on the stage itself for maximum versatility. Front panel controls allow you to fine tune your onstage vocal sound and the integration of your monitor mix. With a WPM-1 you no longer get the monitor mix that your engineer supplies, you hear exactly what you want to hear.

The balanced microphone input has a through output so your performance can be seamlessly integrated into the front of house mix. The WPM-1 also includes an instrument/line level input and mix output, facilitating use as a small format personal mixer with 3 inputs. This versatile interfacing allows the WPM-1 to fit into the widest range of on stage situations.

The WPM-1 uses the same high tech gas assist injection moulding techniques as used in our famous Titan Series loudspeakers, ensuring road tough reliability and ultra light portability.
SPECIFICATIONS
MODEL WPM-1
GENERAL INFO
System type Fullrange
Frequency response +/- 3db 120-18kHz
INPUT SENSITIVITY
Mic -45dBu (-0dBu / -20 dBu)
Line 0dBu (0dBu / -20 dBu)
DIMENSIONS & WEIGHT
Net weight ( kg / lbs ) 3.5KG
Gross weight ( kg / lbs ) 4.9KG
System Specification
Peak SPL 114dB
Power Handling
Continuous 75W
Music 150W
Enclosure
Enclosure Material ABS
Colour Black
Dimensions (mm / inches): H×W× D 330mm x 315mm x 285mm
Enclosure Type Vented
Thickness 8mm
Grille Material Steel
Grille Colour Black
Driver
Driver Size 5"/125mm
Frame Material Steel
Mic EQ Peak +/-15dB @2.1KHz
Microphone Stand Mounting
Bottom Receptacle x2
Boom Arm Mount Receptacle Yes
Rubber Base Yes
Input/Output Panel
Microphone Input Female XLR
Microphone Output Male XLR
Mic / Line Level Switchable
Line / Instrument Input TRS Jack
Line / Instrument Output TRS Jack
Line / Instrument Level Switchable
Aux Input TRS Jack
Mix Output TRS Jack
Mix Output Pre / Post Switchable
