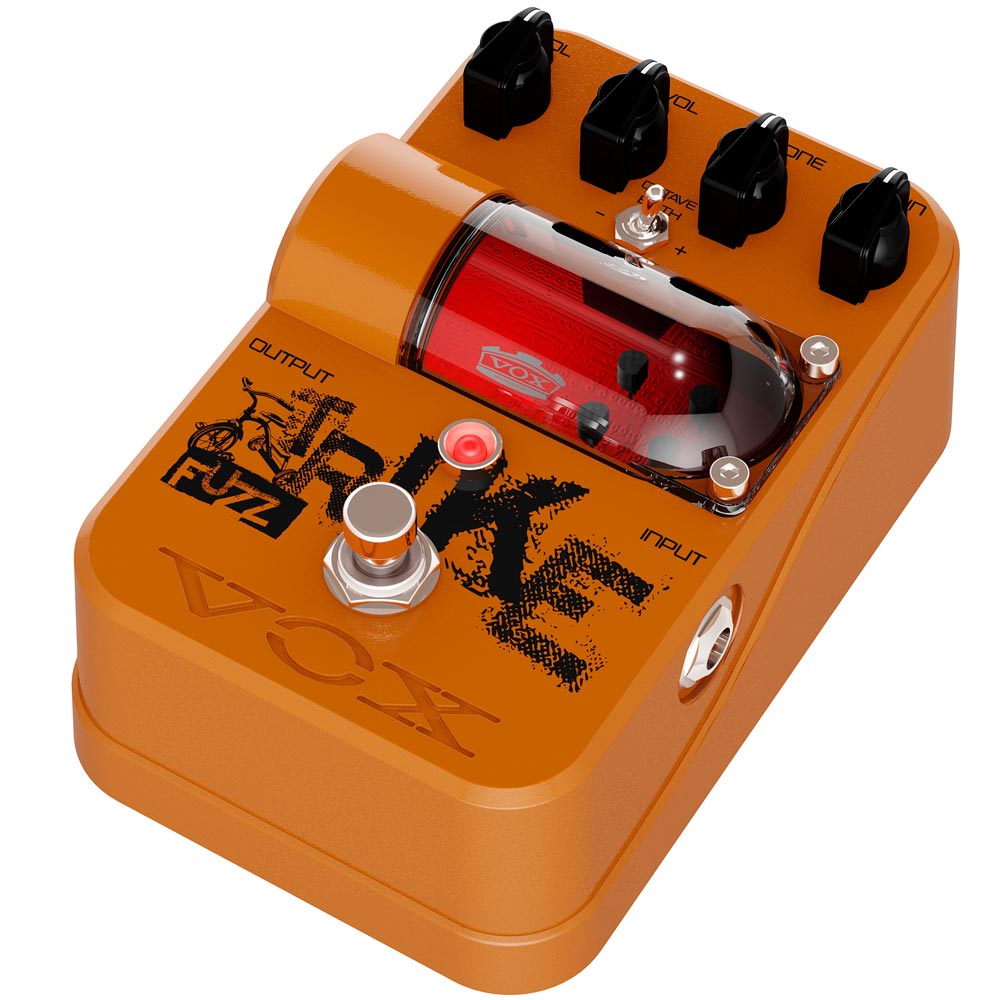

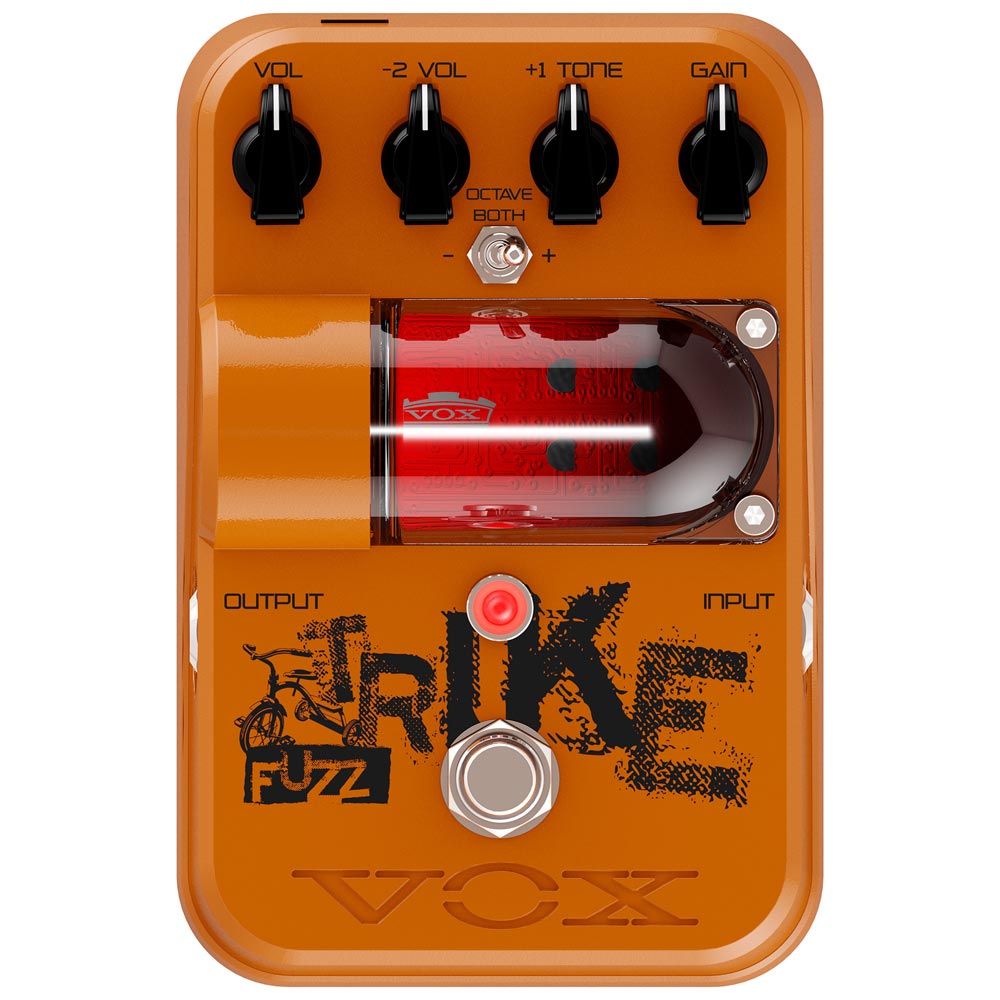

Vox Tone Garage Multi Fuzz w/Tube

The TRIKE FUZZ octave pedal offers a unique tonal signature from Tone Garage’s all analog circuitry.

The Trike Fuzz wins Guitar Player Magazines Editors' Pick
Main features

Discrete circuitry - the result of a relentless design philosophy
True bypass design provides tonal confidence even when the effect is off
Tough die-cast body that stands up to the rigors of the road
A versatile octave fuzz that gives you up to three octaves at once
Three different octave modes
Uses a special diode with a response similar to a germanium diode
An octave fuzz with three types of octave settings
This is an octave fuzz overflowing with vintage character, utilizing specially selected diodes. It covers not only a range of one octave up, but also two octaves down. You can choose three types of octave settings: +1 or, -1 and -2, or all upward and downward octaves to obtain thick vintage fuzz sounds. In addition, there's a tone control for +1 octave and a volume control for -2 octave. Since the Trike Fuzz operates the downward octave circuits in series and combines them in parallel with the upward octave at the end, you can create a diverse range of sounds that cannot be obtained with existing octave fuzz units.

VOX TRIKE FUZZ Specifications

• Input impedance: 680kΩ
• Output impedance: 2.2k Ω
• Connections: INPUT jack (guitar input), OUTPUT jack (line output)
• Power: AA battery x 6 / AC adapter / DC 9V (Option)
• Consumption current: 14mA
• Battery Life: Approximately 280 hours
• Dimensions: (W x D x H): 87 x 132 x 63 / mm, 3.43 x 5.20 x 2.48 / inch
• Weight: 420 g / 14.81 oz (not including battery)
• Accessories: AA alkaline battery x 6 (for verifying operation)
