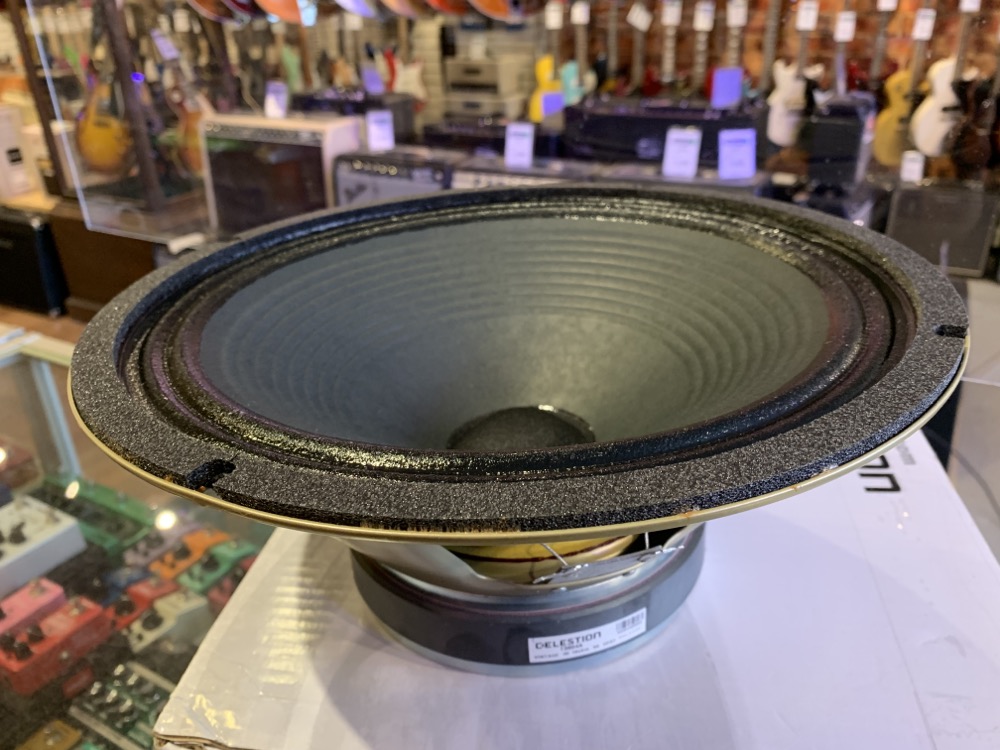

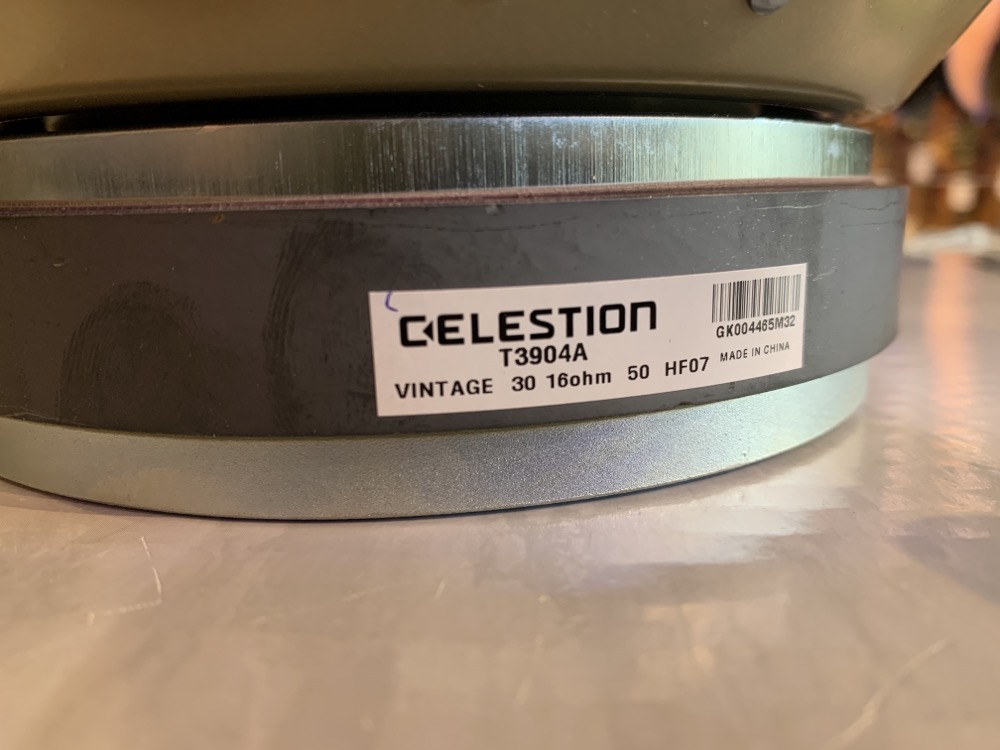

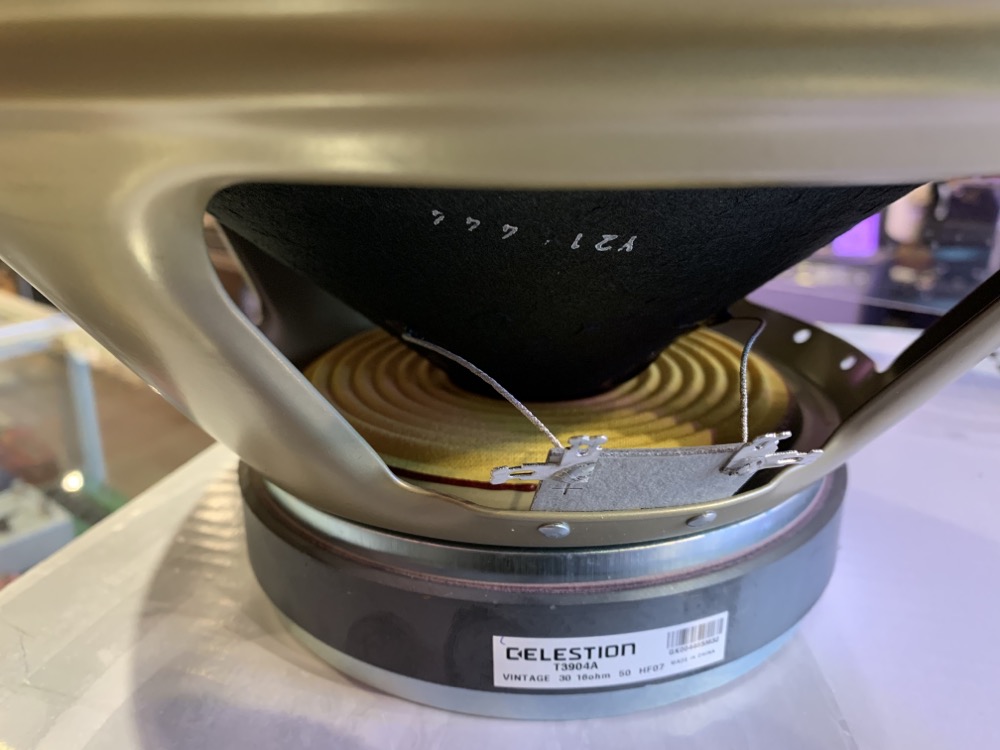

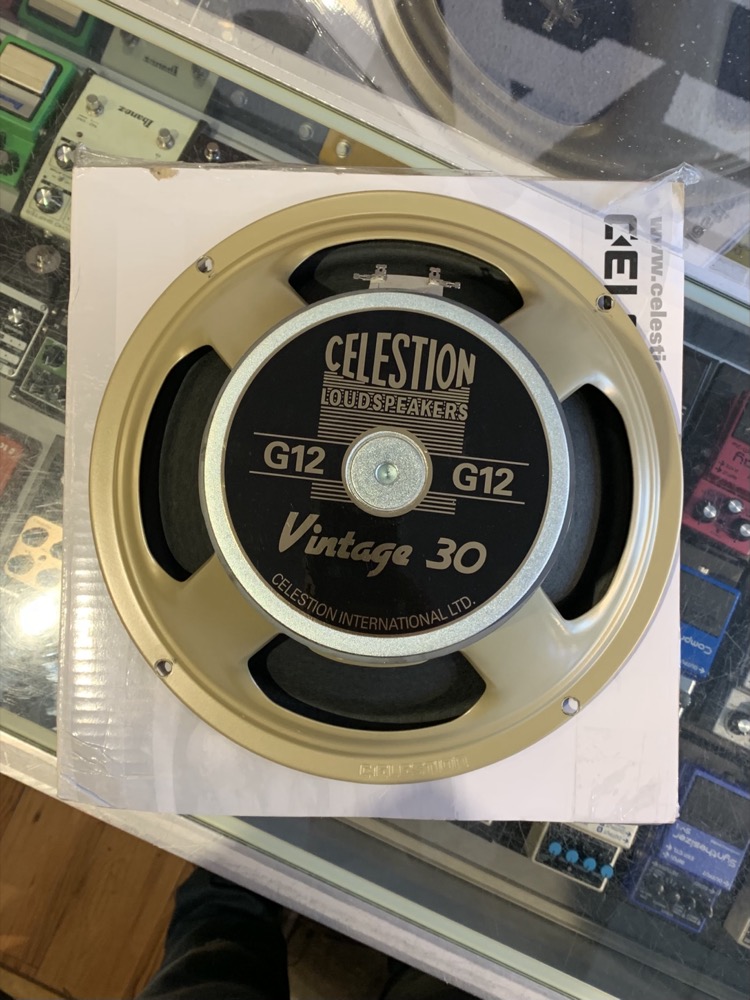

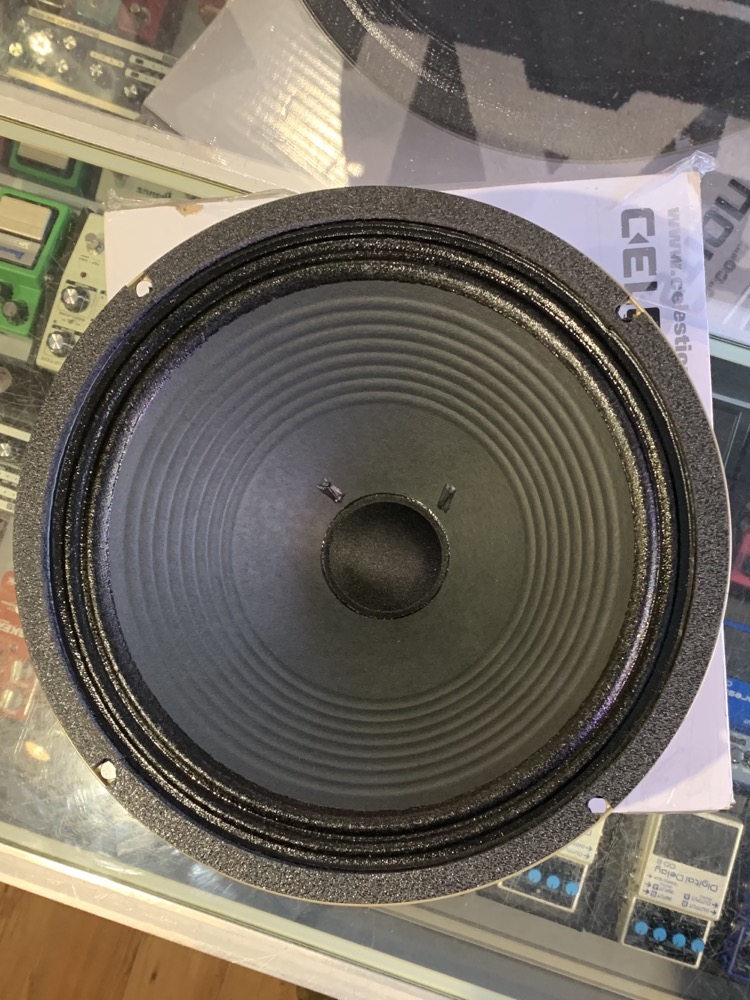

USED Celestion Vintage 30 16 ohm 12" 60W Guitar Speaker T3904
It's a used Celestion Vintage 30! This 12 incher has that punch and presence you know and love, and handles 60 watts, and is 16ohm.
Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly ‘hot-rodded’ amplifiers we set out to develop a modern guitar speaker capable of handling much more power and overdrive. To achieve this we coupled our ‘H’ magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.
Our most revealing speaker the Vintage 30 features enormously detailed and complex overtones a warm low-end a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps or in quartets for a wonderfully intricate vintage 3D crunch the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash Steve Stevens and Peter Frampton.
Specifications
305mm / 12in
Nominal diameter
16Ω
Rated impedance
100dB
Sensitivity
Nominal diameter
305mm / 12in
Power rating
60W
Rated impedance
16Ω
Sensitivity
100dB
Chassis type
Pressed steel
Magnet type
Ceramic
Magnet weight
1.42kg / 50oz
Voice coil diameter
1.75in / 44mm
Voice coil material
Round copper
Frequency range
70-5000Hz
Resonance frequency, Fs
75Hz
DC resistance, Re
7.3Ω or 12.9Ω
Mounting Information
Cut-out diameter
283mm / 11.1in
Diameter
309mm / 12.2in
Magnet structure diameter
156mm / 6.1in
Mounting hole dimensions
7.9mm / 0.31in Ø
Mounting hole PCD
297mm / 11.7in
Number of mounting holes
4
Chassis depth (inc gasket)
97mm / 3.79in
Magnet depth
38mm / 1.51in
Overall depth
135mm / 5.3in
Unit weight
4.7kg / 10.4lb
