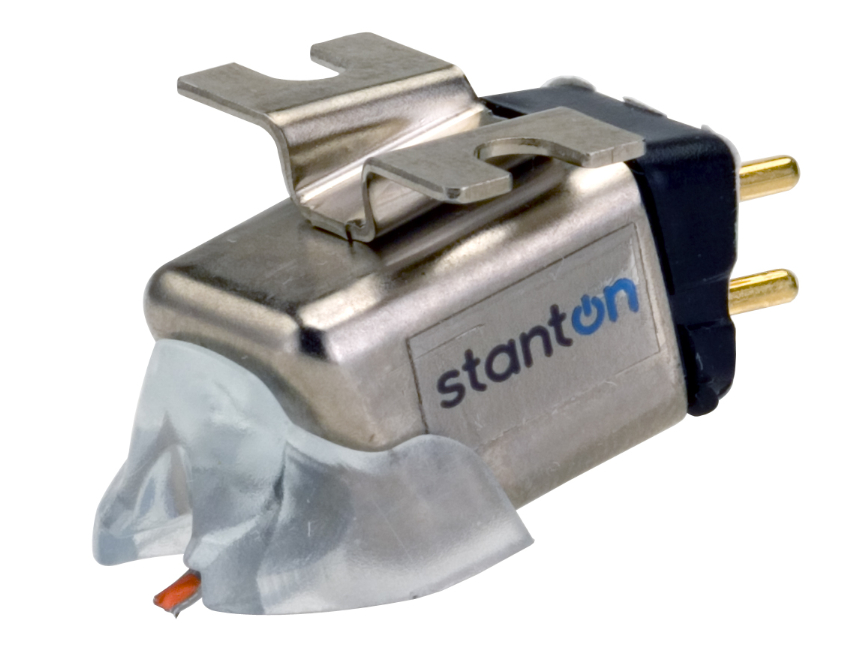

Stanton 520.V3 Headshell Mount Cartridge

Stanton 520.V3

Designed with the most demanding cueing in mind, the 520.V3 offers the tightest suspension in the 500 family of products. The results: this cartridge can take the most demanding loads and deliver on point tracking during backspinning and scratching.
Features:

Best cartridge in the 500 series for scratching
Tight suspension performs at any tracking weight
New industrial design

Perfect for :
Hip-hop / Scratch DJs

Available in the following version:
Twin Pack

Two cartridges inside a blister pack
Twin Pack H4S

Two cartridges conveniently pre-mounted on Stanton H4S silver headshells
Single

A single cartridge inside a plastic carry case.

Stanton 520.V3 Tech Specifications

Spherical Stylus
Stylus Type: Spherical .7 mil
Special High Polish
Frequency Response: 20 to 17 kHz
Nominal Output @ 1kHz: 6.0mV
Channel Separation @ 1 kHz: 27dB
Channel Balance @ 1 kHz: within 2dB
Tracking Force: 2 to 5 grams
DC Resistance: 535 ohms nom.
Inductance: 400 mH
Cartridge Weight: 5.5 g
Tracking Ability: 80µ @ 3 grams
Recommended Load: 47k ohms and 275 pF
Replacement Stylus: N 520
