MXL Small Diaphragm Condenser Microphone

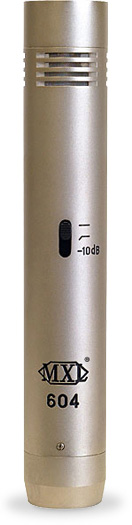

MXL 604
Small Diaphragm Condenser Microphone
PATENTED

Our MXL 604 instrument microphone delivers the dynamic range musicians and artists crave for acoustic guitars, drums, high-hat cymbals, pianos, percussion, stringed instruments and more. Using transformerless FET circuitry and a gold diaphragm capsule design, the 604 also features -10 dB switchable attenuation pad, low-frequency roll-off, and an interchangeable omnidirectional capsule for versatility in any recording application.

Extremely versatile microphone for instruments
Bass roll-off and attenuator to fit any recording situation
Transformerless design for solid lows and open highs
Ideal for drum overheads, acoustic guitars, pianos and strings
Fast transient response for extra accuracy

Acoustic Guitar Microphone String Instrument Microphone Instrument Microphone Piano Microphone Percussion Microphone

wired with Mogami Cable

Type:
Pressure gradient condenser mic
Diaphragm:
6 micron gold-sputtered
Capsule Size:
22mm/.87 in.

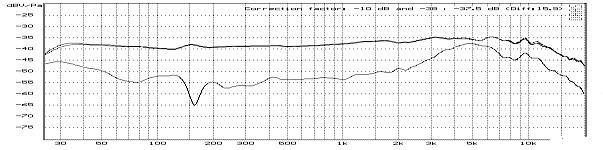

Frequency Response:
30Hz - 20kHz
Polar pattern:
Cardioid/Omnidirectional
Sensitivity:
15 mV/Pa
Output Impedance:
150 ohms
Pre-Attenuation Switch:
0 dB, -10 dB
High Pass Filter:
6 dB/octave @ 150 Hz
Equivalent Noise:
17 dB (A-weighted IEC 268-4)
S/N Ratio:
77 dB (Ref. 1 Pa A-weighted)
Max SPL for .5% THD:
137 dB
Power Requirements:
48V phantom power (+/- 4V)
Size:
22mm x 133mm/5.24 in. x 0.8 in.
Weight:
0.3 lbs/136.08g
Metal Finish:
Nickel Plated
