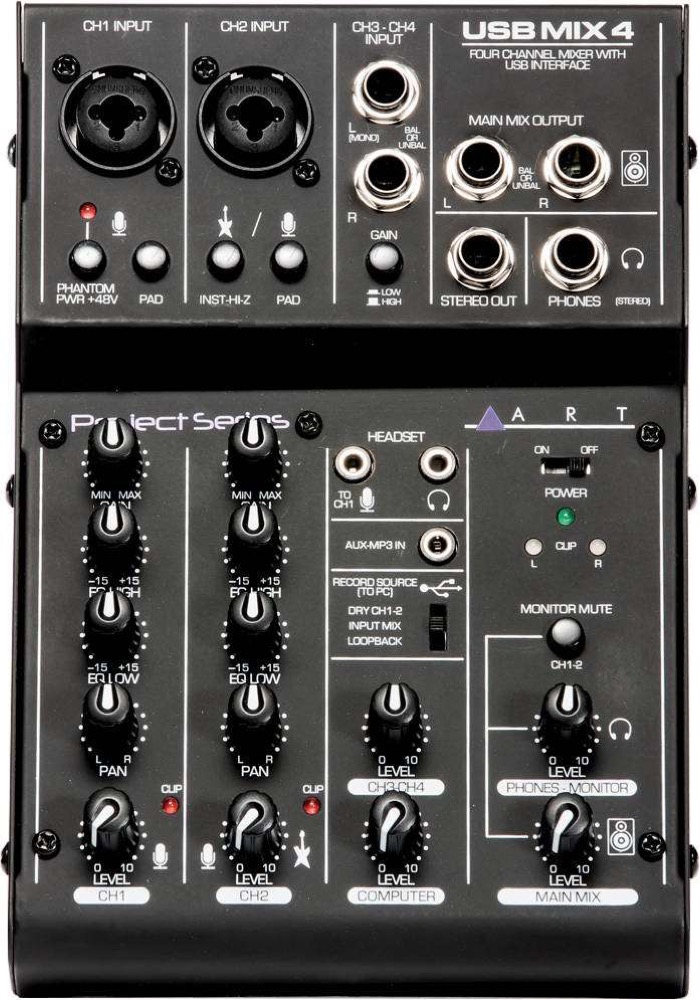

ART 4 Channel USB Recording Mixer

A small mixer has lots of uses, from live gigs to recording. The ART USBMix4 is a great starting point for building a personal home studio. Perfect for podcasters, songwriters or at home movie makers looking for a simple solution for recording voiceovers, location recording or adding music to your projects using any Mac or PC.

Details

• High Performance Low Noise Design
• Switchable +48v Phantom Power (CH1 only)
• Assignable USB Record Source
• Independent Level Controls for Main and Headphone/Monitor Outputs
• 1/8th-inch Headset Connectors (Mono Mic In and Stereo Headset Out)
• Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC
• Operates on USB Power or 5VDC External Power Supply (Included)
• Input Connections: XLR & 1/4-inch Balanced Combi-jack (CH 1 & CH2), 1/4-inch TRS Balanced (CH3 & CH4), 1/8-inch TRS Aux/MP3, 1/8-inch Headset Mic
• Output Connections: 1/4-inch TRS Balanced Main Mix Outputs,
• 1/4-inch TRS Stereo Output & Monitor Outputs, 1/8th-inch Headset Output
• Signal to Noise Ratio: >90dB Typical (Ref 0dBu)
• Maximum Input Level: +8dBu (Mic), +16dBu (1/4-inch Input)
• Maximum Output Level: +15dBu Main Mix Outputs
• Maximum Gain: >55dB (Mic), >37dB (Instrument), 5dB (CH3 & CH4)
• USB Computer Interface: USB Class Compliant plug-and-play Mac / PC Interface
• Power: Via USB or 5VDC @ 500mA
• Dimensions: 1.75"H x 5.1"W x 7.5"D (45mm x 130mm x 191mm)
